XMPP Service Discovery extensions for M2M and IoT

Within the Webinos project we have investigated if we could use XMPP as the signalling protocol. Although it was decided by the Webinos project not to use XMPP in Webinos we believe we’ve made some interesting observations and solutions for some of the problems we’ve encountered in our investigation.

We presented our findings in the Jabber dev-room on FOSDEM’13 and got some interesting feedback from the Guru’s present.

In this blogpost we want to share our insights upon service discovery and invocation in XMPP which we believe are very well applicable onto machine-to-machine communications and the Internet-of-Things.

About Webinos

If you would like to know what Webinos is all about I suggest that you watch this short film that describes Webinos quite well. But to summarize: Webinos is about sharing device capabilities with applications running of different devices. For instance one can have an application running on a thermostat at home that uses the GPS capabilities of a car to track if your home should be heated or not.

One of the requirements is that a device can have multiple instances of the same capability, for example a smartphone has an internal GPS sensor but can also pair with a Bluetooth GPS sensor that has better accuracy, hence the GPS service would have 2 instances on this device.

XMPP to the rescue

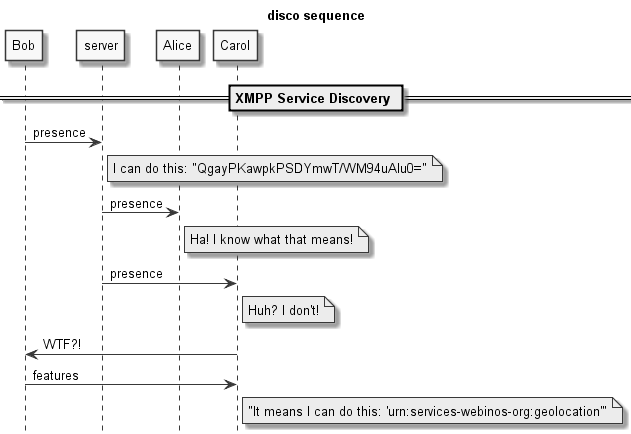

XMPP has some great out-of-the-box features that we could use to discover services. For example XMPP Service Discovery (XEP-0030) and XMPP Entity Capabilities (XEP-0115). These mechanisms works as described in the call flow shown below:

disco

Bob publishes his presence state to the server and the server propagates his presence state to all his subscribers. Encoded in his presence message is a hash based upon his device capabilities, it is unique for every state, so if a capability gets added or removed the hash will change. If a receiving node does not know what the hash means, that node can ask Bob’s device for more information. The receiving node can that cache that information using the hash it received earlier. Note that all of Bob’s own devices are also subscribed on his presence so each of his devices will receive the presence updates of his other devices.

Looking at the wire protocol this looks like this:

<presence from="someone@servicelab.org/mobile">
  <c xmlns="http://jabber.org/protocol/caps"
      hash="sha-1"
      node="http://webinos.org/android"
      ver="QgayPKawpkPSDYmwT/WM94uAlu0="/>
</presence>

The ver attribute holds the hash that is generated using the capabilities of someone’s mobile device. The message is send to the server and received by someone’s TV. The TV is unaware of the meaning of the hash and requests additional information:

<iq from="someone@servicelab.org/tv"
    id="discodisco"
    to="someone@servicelab.org/mobile"
    type="get">
  <query xmlns="http://jabber.org/protocol/disco#info"
      node="http://webinos.org/android#QgayPKawpkPSDYmwT/WM94uAlu0="/>
</iq>

This message tells someone’s mobile that someone’s TV wants to know what the hash code means. Someone’s mobile will answer the message:

<iq from="someone@servicelab.org/mobile"
    id="discodisco"
    to="someone@servicelab.org/tv"
    type="result">
  <query xmlns="http://jabber.org/protocol/disco#info"
      node="http://webinos.org/android#QgayPKawpkPSDYmwT/WM94uAlu0=">
    <identity category="client" name="Webinos for Android vX.X.X" type="mobile"/>

    <feature var="urn:services-webinos-org:geolocation"/>
    <feature var="urn:services-webinos-org:geolocation"/>

  </query>
</iq>

In this case the hash code means that there are 2 instances of the geolocation service available on someone’s mobile. But how can someone’s TV differentiate between the 2 services? Currently in XMPP it is possible to add additional information about a service in the message (XEP-128) but it does not has the possibility to differentiate between multiple services within the same namespace. The nice thing about XMPP is that you can extend it… And that is exactly what we did:

<iq from="someone@servicelab.org/mobile"
    id="discodisco"
    to="someone@servicelab.org/tv"
    type="result">
  <query xmlns="http://jabber.org/protocol/disco#info"
      node="http://webinos.org/android#QgayPKawpkPSDYmwT/WM94uAlu0=">
    <identity category="client" name="Webinos for Android vX.X.X" type="mobile"/>

    <feature var="urn:services-webinos-org:geolocation">
      <!-- new stuff -->
      <instance xmlns="webinos:rpc#disco" id="gps1">
        <displayName>Internal GPS</displayName>
        <description>Internal GPS sensor</description>
        ...
      </instance>
      <!-- back to normal --->
    </feature>

    <feature var="urn:services-webinos-org:geolocation">
      <instance xmlns="webinos:rpc#disco" id="gps2">
        <displayName>Bluetooth GPS</displayName>
        <description>Bluetooth GPS sensor</description>
        ...
      </instance>
    </feature>

  </query>
</iq>

We added an instance element to each of the feature elements. The instance element holds the identifier for each service instance and hold some additional information about the service. The additional information can be extended with extra information about the service, like for example the accuracy of the GPS device.

Service invocation

Because someone’s TV is now aware of the location services on someone’s mobile it can now choose which of these service instances it want to invoke.

Since webinos is all about web technologies we’ve chosen not to use XMPP RPC (XEP-0009) but to transport JSON RPC payloads over XMPP.

<iq from="someone@servicelab.org/tv"
    id="rpc1"
    to="someone@servicelab.org/mobile"
    type="get">
  <query xmlns="urn:services-webinos-org:geolocation">
    <payload xmlns="webinos:rpc#invoke" id="gps1">
      { "method": "getCurrentPosition"
      , "params": {}
      , "id": "rpc1"
      }
    </payload>
  </query>
</iq>

The request is than answered by someone’s mobile:

<iq from="someone@servicelab.org/mobile"
    id="rpc1"
    to="someone@servicelab.org/tv"
    type="result">
  <query xmlns="urn:services-webinos-org:geolocation">
    <payload xmlns="webinos:rpc#result" id="gps1">
        { "result":
          { "coords":
            { "latitude": 52.5
            , "longitude": 5.75
            }
          , "timestamp": 1332410024338
          }
        , "id": "rpc1"
        , "callbackId": "app1"
        }
    </payload>
  </query>
</iq>

Feedback

As mentioned above we’ve presented our idea in the Jabber dev-room on FOSDEM. The initial feedback we got from the XMPP Guru’s that were in the room was that XMPP Service Discovery disco#info feature we extended is about getting information about what exactly a node is capable of. One could than use disco#items to discover the instances of the feature.

The problem we have with that approach is that the disco#items are not used to create the version hash as described in the Entity Capability XEP. So if a service instance goes away but another instance of the same service is still presence the presence information of that node would not change and other node’s would not be notified about the change. This could be a problem in a situation were someone’s TV would have an accuracy requirement on the GPS service instance it wants to use. An example:

  • Someone’s mobile has one location service available. It has an accuracy of 30 meters.
  • To notify other devices about this feature is sends out a presence update with version hash 123.
  • Someone’s TV gets the details that belong to version hash 123 and uses disco#items to query for the instances of the location services. The single service that is present is not accurate enough for someone’s TV as the application that is running there needs an accuracy of 10 meters.
  • Someone pairs a Bluetooth GPS device with an accuracy of 10 meters with his mobile. The disco#items of someone’s mobile change but the feature list stays the same, so the version hash will stay 123 and the presence state would not have to updated.
  • Someone’s TV would never be aware of the fact that his service requirements are now met because someone’s mobile feature set is still the same.

Conclusion

The approach we’ve chosen for service discovery proved to work quite well with our requirements but XMPP flexibility makes other solutions to the same problem viable as well.
